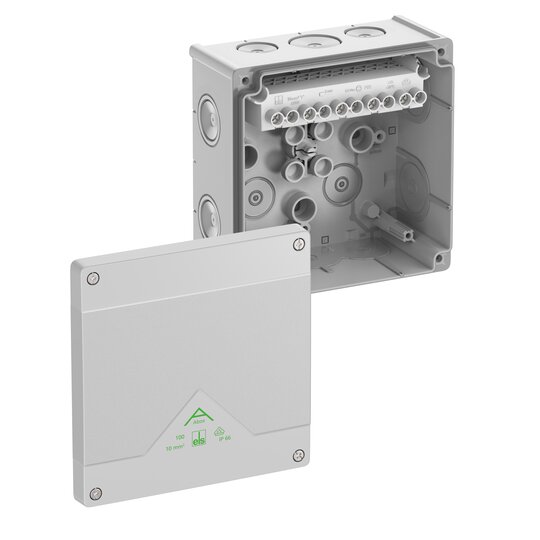

Ausführung | Verbindungskasten |
Max. Leiterquerschnitt | 10 qmm |
Bestückung | Schraubklemme |
Form | quadratisch |
Montageart | Wand-/Deckenmontage |
Montage im Erdreich | false |
Montage unter Wasser | false |
Einführung von hinten | true |
Länge | 152 mm |
Breite | 152 mm |
Tiefe | 80 mm |
Anreihbar | false |
Anzahl der Einführungen | 12 |
Art der Gehäusedurchführung | Dichtmembran |
Werkstoff | Kunststoff |
Halogenfrei | true |
Oberfläche | unbehandelt |
Farbe | grau |
Schutzart (IP) | IP66 |
Schutzart (NEMA) | sonstige |
Ausführung Deckel | ohne |
Transparenter Deckel | false |
Deckelbefestigung | geschraubt |
Vergießbar | false |
Vergussmasse mitgeliefert | false |
Plombierbar | true |
Bemessungsisolationsspannung Ui | 690 V |
Funktionserhalt | ohne |
Mit Abschirmung | false |
Witterungsbeständig | true |
Einsatztemperatur | -25 - 55 €C |
Explosionsgeprüfte Ausführung | false |
Für Ex-Zone Gas | ohne |
Für Ex-Zone Staub | ohne |
