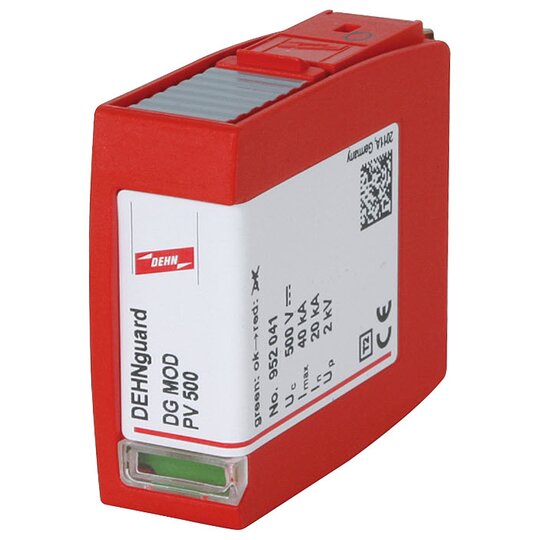

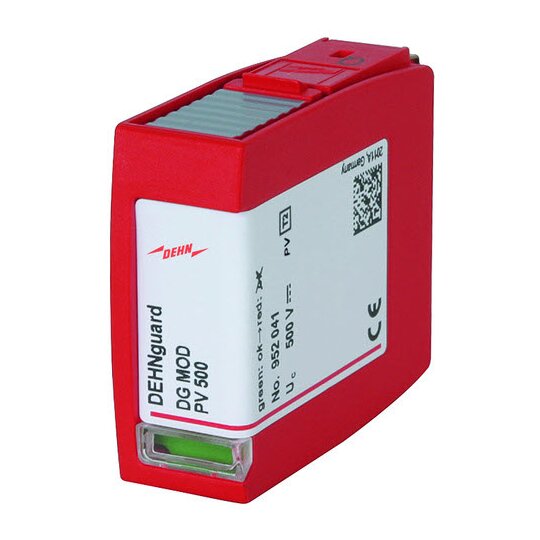

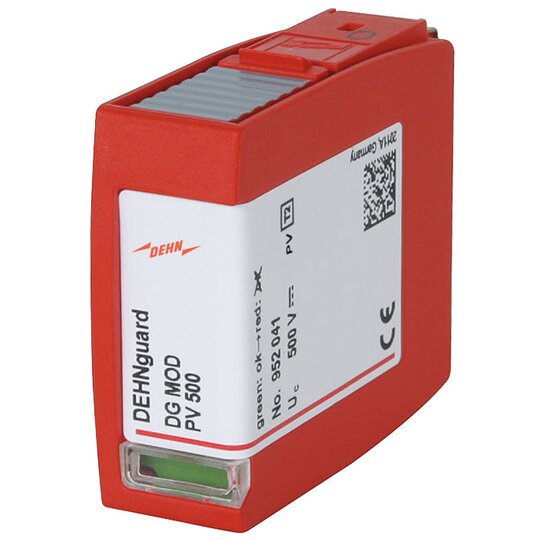

Dehn DG MOD PV 500 Überspannungsabl Typ 2 Varistor- Schutzmodul DEHNguard M u.S

Listenpreis
Art.-Nr.
2031235
EAN
4013364141841
Hersteller-Nr.
952041
DEHA.-Nr.
3731843
eClass.-Nr.
27130805
Herstellerlink
Wunsch-Suchbegriff
Netzform DC false
Netzform IT false
Netzform TN false
Netzform TN-C false
Netzform TN-C-S false
Netzform TN-S false
Netzform TT false
Netzform sonstige false
Nennableitstoßstrom (8/20) 20 kA
Max. Ableitstoßstrom (8/20) 40 kA
Höchste Dauerspannung DC 500 V
Schutzpegel 2 kV
Integrierter Kurzschlussschutz false
Integrierte Vorsicherung false
Leckstromfrei false
Montageart auf Basiselement
Baugröße 1 TE
Mit Fernmeldekontakt false
Signalisierung am Gerät optisch
Prüfklasse Typ 2 true

Varistor-Schutzmodul DG MOD PV 500 Steckbares Schutzmodul für DEHNguard M YPV SCI und S PV SCI Klassifikation Typ 2-Ableiter nach EN 61643-31 der Red/Line û Produktfamilie Hochleistungsfähige Varistor-Technologie Höchste Dauerspannung: 500 V dc Nennableitstoßstrom: 20 kA Defektanzeige Fabrikat: DEHN Typ: DG MOD PV 500 Art.-Nr.: 952041 oder gleichwertig.

3017038B.pdf

Montageanleitung

Download (Stand: 28.03.2024)

10223611_10223679.pdf

Produktdatenblatt

Download (Stand: 28.03.2024)

10177117_28330688.pdf

Maßzeichnung

Download (Stand: 28.03.2024)

10223611_28456551.pdf

Schaltbild

Download (Stand: 28.03.2024)

Deeplink Produktseite

Download (Stand: 28.03.2024)
