Nennspannung AC | 230 V |
Höchste Dauerspannung AC | 255 V |
Höchste Dauerspannung DC | 255 V |
Nennlaststrom | 25 A |
Nennableitstoßstrom (8/20) (L-N) | 3 kA |
Gesamtableitstoßstrom (8/20) (L+N-PE) | 5 kA |
Schutzpegel L-N | 1,25 kV |
Schutzpegel L-PE/N-PE | 1,5 kV |
Polzahl | 1 |
Montageart | auf Basiselement |
Mit Fernmeldekontakt | false |
Signalisierung am Gerät | optisch |
Prüfklasse Typ 3 | true |
Mit Entstörfilter | false |

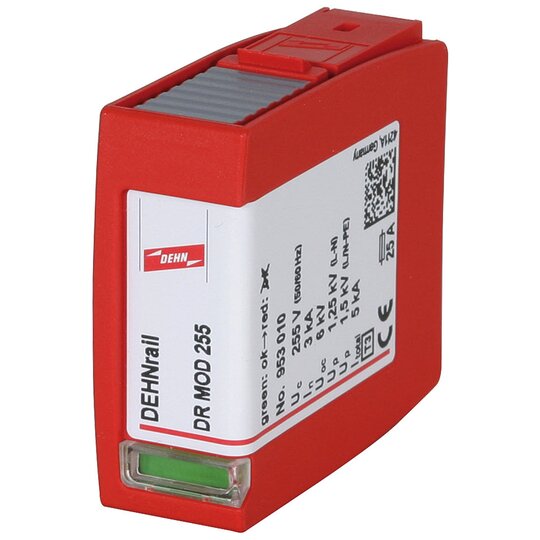

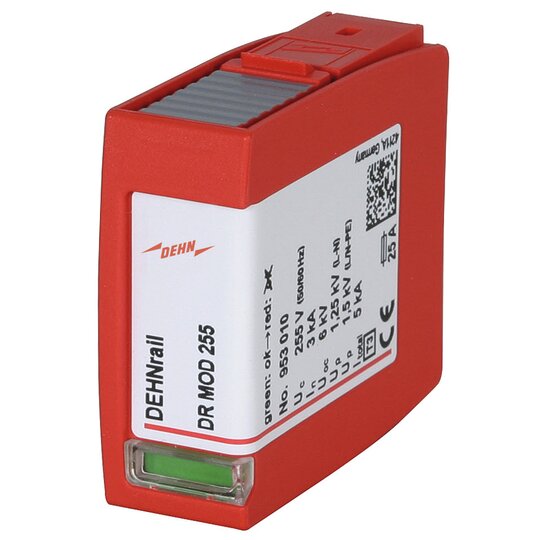

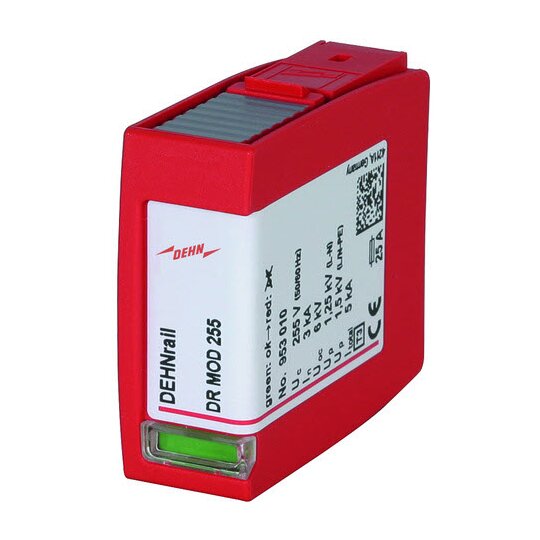

Schutzmodul DEHNrail M 2P DR MOD 255 Steckbares Schutzmodul für DEHNrail M 2P 255 (FM) der Red/Line - Produktfamilie nach EN 61643-11 mit integrierter Y-Schutzbeschaltung Höchste Dauerspannung: 255 V ac/dc Gesamtableitstoßstrom: 5 kA Schutzpegel L/N: <, 1,25 kV Fabrikat: DEHN Typ: DR MOD 255 Art.-Nr.: 953010 oder gleichwertig.
