Nennspannung AC | 230 V |
Höchste Dauerspannung AC | 255 V |
Nennableitstoßstrom (8/20) (L-N) | 3 kA |
Gesamtableitstoßstrom (8/20) (L+N-PE) | 5 kA |
Schutzpegel L-N | 1,25 kV |
Schutzpegel L-PE/N-PE | 1,5 kV |
Max. Überstromschutzeinrichtung Stichverdrahtung (Sicherung) | 16 A |
Polzahl | 2 |
Montageart | Steckdosenleiste |
Mit Fernmeldekontakt | false |
Signalisierung am Gerät | akustisch |
Prüfklasse Typ 3 | true |
Mit Entstörfilter | false |
Schutzart (IP) | IP20 |

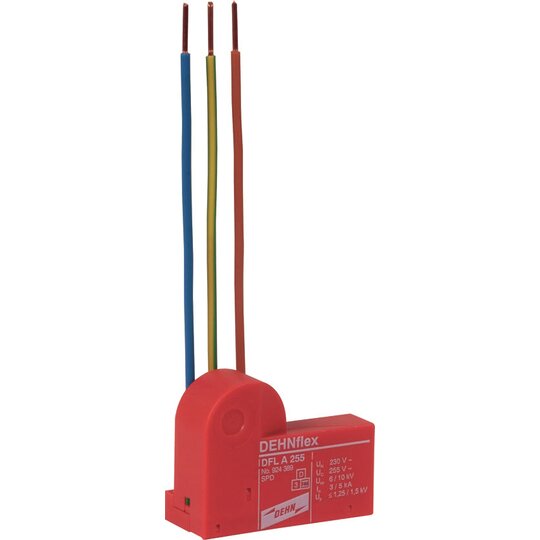

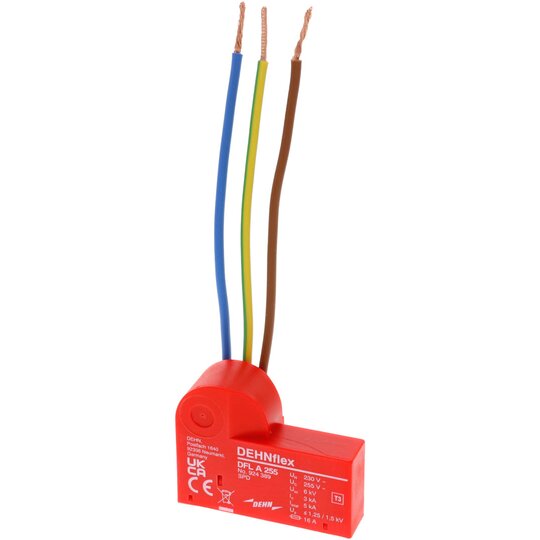

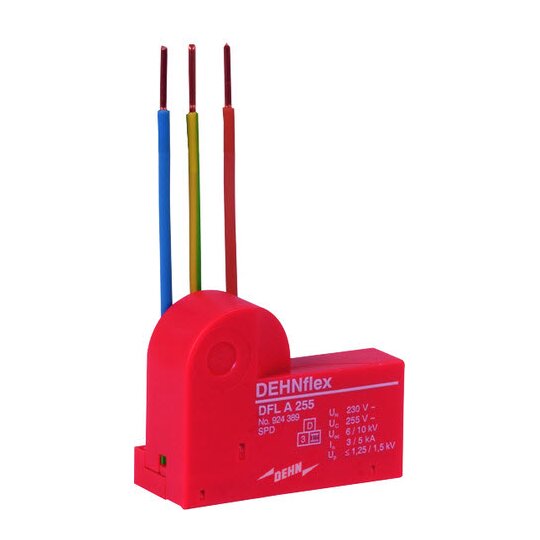

Überspannungs-Ableiter DEHNflex A 255 2-poliger Überspannungs-Ableiter für alle Installationssysteme der 230 V-Endgeräte Ableiter Typ 3 nach EN 61643-11 zum Einsatz in Geräteeinbaudosen und in Kabelkanälen kompakte Bauform Akustische Defektanzeige mit Testfunktion Höchste Dauerspannung: 255 V ac Schutzpegel: <,= 1,5 kV Gesamtableitstoßstrom: 5 kA Max. netzseitiger Überstromschutz: 16 A gG oder B 16 A Energetische Koordination nach DIN EN 62305-4 Ableiter der Red/Line-Familie Fabrikat: DEHN Typ: DFL A 255 Art.-Nr.: 924389 oder gleichwertig.
