IEC-Stromstärke | 16 A |
Spannung nach EN 60309-2 | 110 V (50+60 Hz) gelb |
Polzahl | 3 |
Uhrzeit-Stellung | 4 h |
Kennfarbe | gelb |
RAL-Nummer | 1012 |
Schutzart (IP) | IP44 |
Anschlusstechnik | Schraubklemme |
Bauform | Aufbaugerätestecker |
Phasenwender | false |
Steckrichtung | abgewinkelt |
Werkstoff | Kunststoff |
Kontaktmaterial | CuZn |
Oberflächenbehandlung der Kontakte | unbehandelt |
Militärausführung | false |

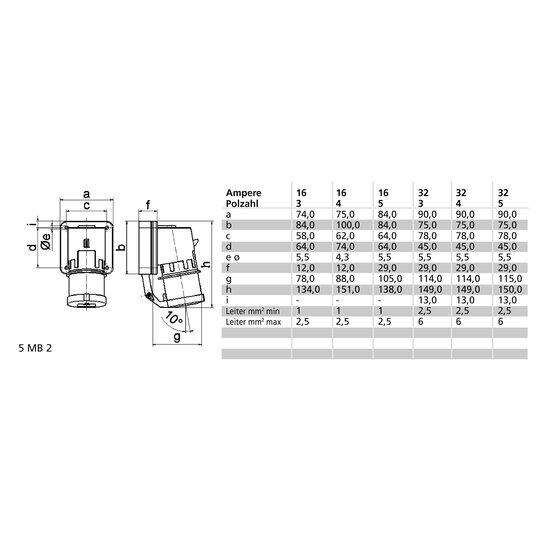

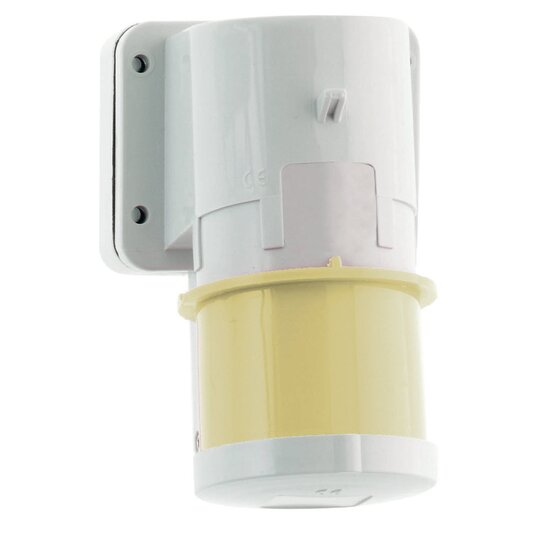

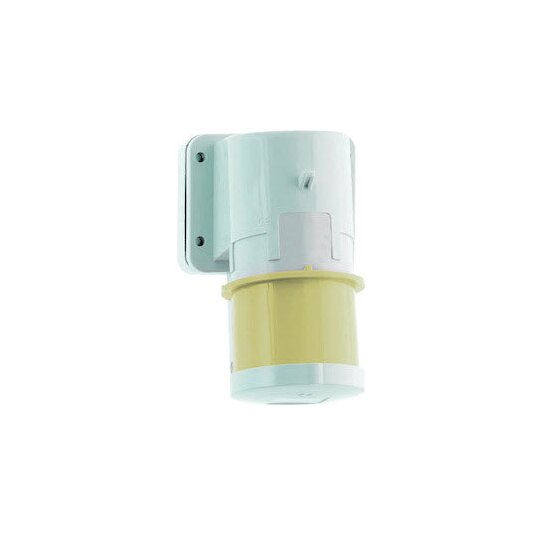

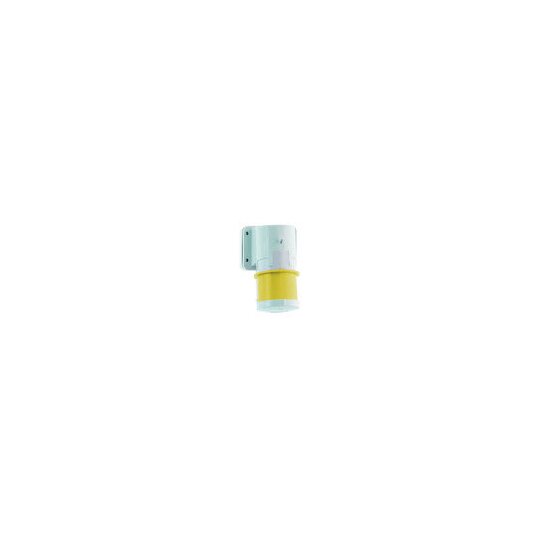

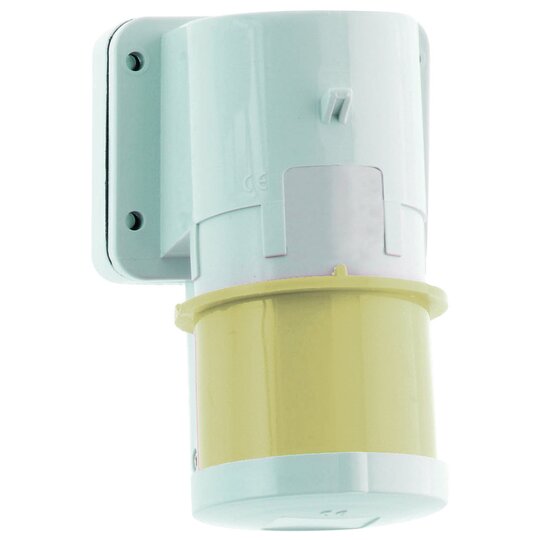

Aufbaugerätestecker 16A 3p (2P+PE) 110V (100 - 130V~) 4h IP44 Frequenz: 50/60Hz Technische Kennfarbe: gelb RAL 1012 Kontaktträger/Kontakte: der Kontaktträger ist aus Polyamid, die Kontakte sind Messing blank Maximaler Leiterquerschnitt: 2,5 qmm Gehäusematerial: Polyamid Anschlusstechnik: mit Schraubklemme Kabeleinführung: sonstige Gerätefarbe: Kragen gelb RAL 1012, Klappdeckel grau RAL 7035, Gehäuse grau RAL 7035 Gerätehöhe: 132 mm, Gerätebreite: 74 mm, Gerätetiefe: 80 mm Flanschmaß vertikal: 84 mm, Flanschmaß horizontal: 74 mm Bohrlochabstand vertikal: 64 mm, Bohrlochabstand horizontal: 58 mm Sonstige technische Eigenschaften: Der Klappdeckel ist selbstschließendist selbstschließend
